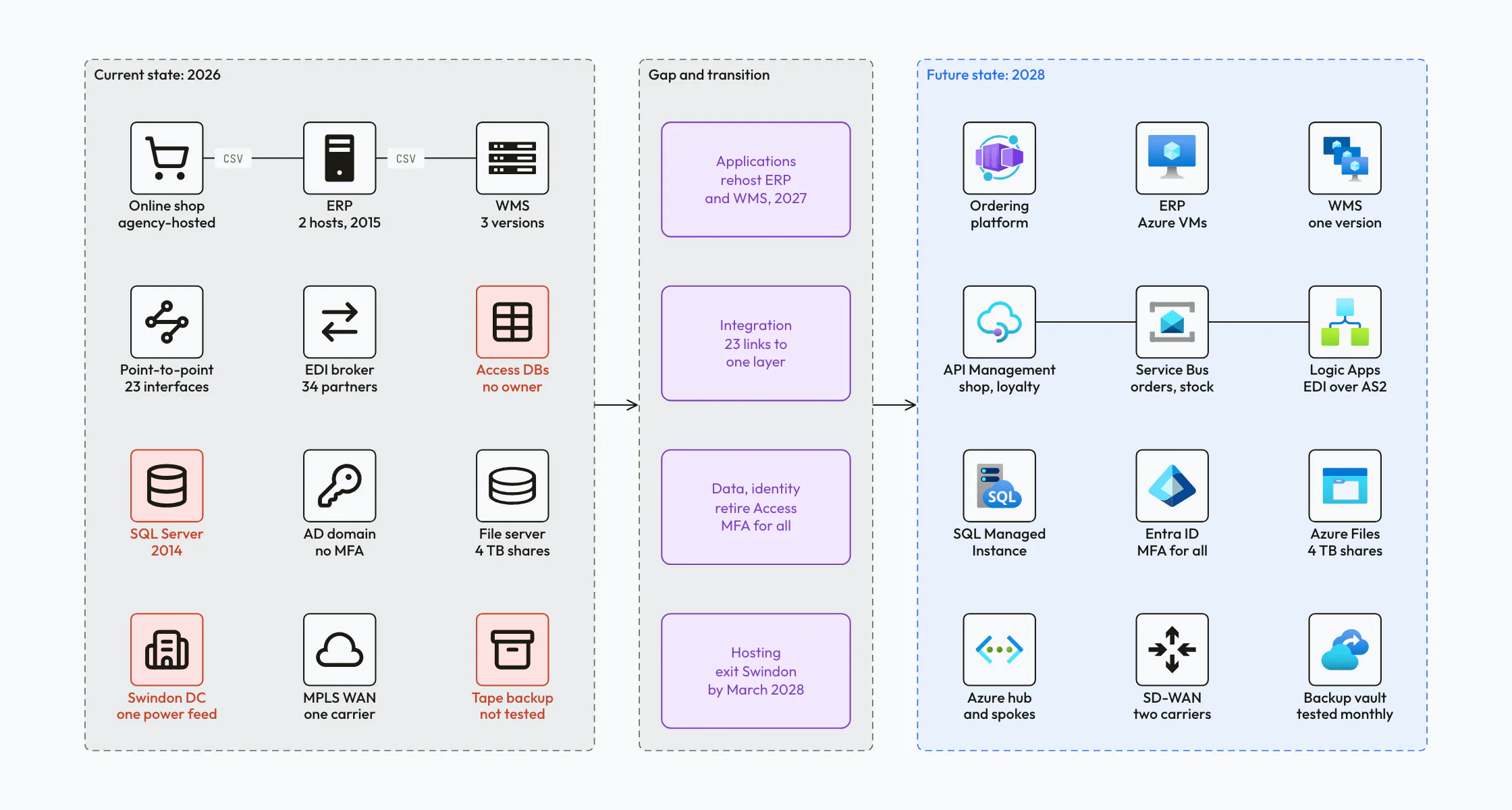

Current and future state: an example
As-is and to-be, side by side
The same rows on both sides, so each change reads straight across.
Risks you can see
Red marks what makes the current state risky, with the reason behind it.
The work in between
Streams of work that close the gap, each with a sponsor and an end date.
The basics
What is a current and future state diagram?
A current and future state diagram, also called an as-is and to-be diagram, compares how an organisation's systems or processes work today with how they should work after a change programme, and shows the work that closes the gap.
It is often the first picture in a transformation proposal or business case, because it answers three questions at once: what is wrong today, what good looks like, and how to get there. It reads best when both states use the same rows, so each change reads straight across.
