Low-Level Design Template
Draw every subnet, address and resource by name, and keep the exact settings, rules and routes one click behind each one.
Free forever on the Personal plan
Low-level designs: an example
Every name and address
Subnets, servers and endpoints labelled exactly as they will be built.
Settings in tables
Sizes, rules and routes in tables behind each resource, ready to build from.
Code beside the design
Templates and scripts in a Raw tab, next to the resource they create.
The basics
What is a low-level design?
A low-level design (LLD) specifies exactly how part of a system is built: the networks and address ranges, every server or service with its name, size and address, security rules, routes, DNS, and backup and monitoring settings. It turns a high-level design into something an engineer can implement and a reviewer can check line by line.
Low-level designs are long and detailed, which is why they drift from what was built. A diagram labelled with the names and addresses, with the full settings behind each resource, keeps the detail readable and makes gaps easy to spot.

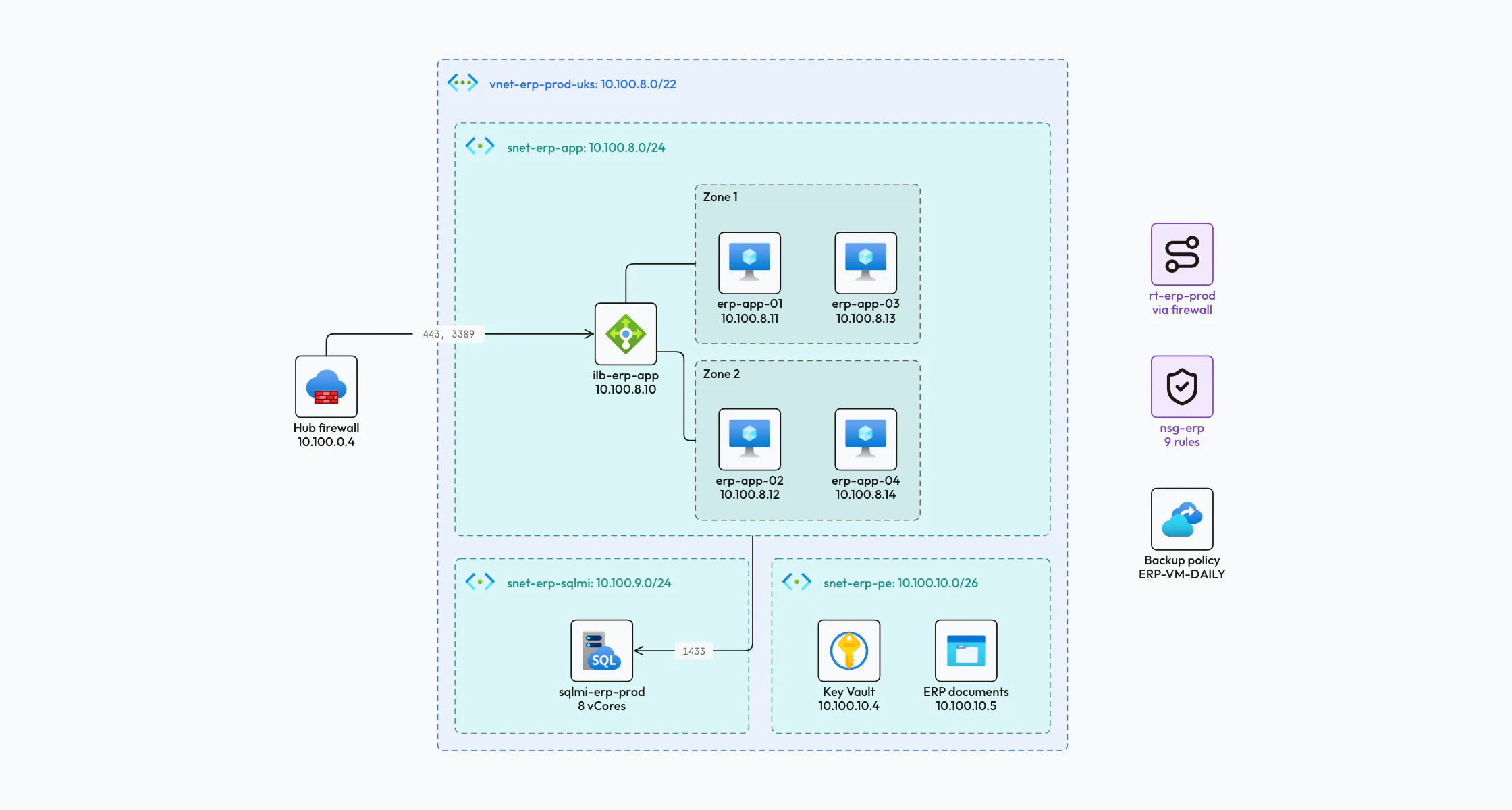

In Blueprintr every subnet and resource on the diagram opens a stratum with its settings in tables, and the infrastructure code can sit beside it in a Raw tab.
